SW30

Location: Yeodene

Australian Soil Classification: Bleached-Ferric, Mesotrophic, Brown CHROMOSOL

Map Unit: Map Unit 9 (Maher and Martin, 1987).

General Landscape Description: Gently Undulating Plain.
Site Description: Grazing paddock (dairy).
Geology: Tertiary - Moorabool Viaduct Formation.

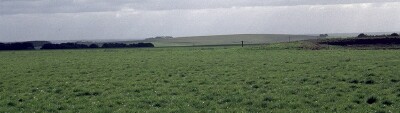

SW30 Landscape
SW30 Landscape


Soil Profile Morphology:

Surface Soil

A10-20 cmBrown (7.5YR3/2); fine sandy clay loam; weak coarse blocky structure; weak to firm consistence moist; pH 5.2; clear and wavy change to:

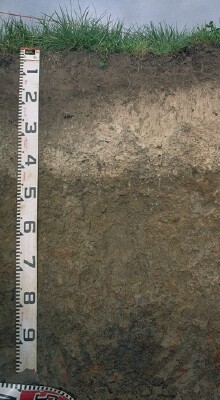

SW30 Profile
SW30 Profile
A2120-30 cmPale brown (10YR6/3), conspicuously bleached (10YR8/2d); rusty root channel mottling; light fine sandy clay loam; very weak consistence moist; pH 5.7; clear change to:
A2230-40 cmPale brown (10YR6/3), conspicuously bleached (10YR8/2d); light fine sandy clay loam; contains many (40%) ferruginous nodules (2-20 mm in size); pH 6.3; abrupt change to:
Subsoil
B2140-70 cmDark yellowish brown (10YR4/4) with dark red (2.5YR4/6) and brownish yellow (10YR6/8) mottles; medium clay; moderate coarse blocky, parting to strong medium blocky, parting to fine blocky structure; strong consistence moist; pH 6.3; gradual change to:
B2270-90 cmBrown (10YR5/3) with many dark red (2.5YR4/8) and brownish yellow (10YR6/8) mottles; medium clay (silty); moderate coarse blocky, parting to strong medium, parting to fine blocky structure; strong consistence moist; pH 6.4; gradual change to:
B2390+ cmBrown (10YR5/3) with red (2.5YR4/8), brownish yellow (10YR6/8) and light brownish grey (10YR6/2) mottles; medium clay; strong medium polyhedral structure; strong consistence moist; contains ferruginised sandstone fragments; pH 6.4.

Key Profile Features:

Soil Profile Characteristics:



pH



Salinity Rating
Surface
(A1 horizon)
Strongly Acid
Very Low
Non-Sodic
None
Subsoil
(B21 horizon)
Slightly Acid
Very Low
Non-Sodic
None
Deeper Subsoil
(at 90+ cm)
Slightly Acid
Very Low
Non-Sodic
None

SW30 pH
The surface horizon is strongly acid. The subsoil is slightly acid. 		SW30 Salinity
The whole profile has a very low salinity rating.		SW30 Clay
The clay content increases abruptly at 40 cm depth.

Horizon
Horizon Depth
(cm)
pH
(water)
pH
(CaCl2)
EC
(dS/m)
Exchangeable Cations
Ca
Mg
K
Na
meq/100g
A1
0-20
5.2
4.6
0.1
4.3
0.3
0.2
0.05
A21
20-30
5.7
4.8
<0.05
1.4
0.3
0.05
0.05
A22
30-40
6.3
5.2
<0.05
1.4
0.7
0.05
0.05
B21
40-70
6.3
5.6
0.09
4.7
6.1
0.1
0.4
B22
70-90
6.4
5.7
0.09
3.8
7.3
0.1
0.5
B23
90+
6.4
5.8
0.1
3.2
7.4
0.05
0.5

Horizon
Horizon Depth
(cm)
Acidity
meq/100g
Oxidisable Organic Carbon
%
Total
Nitrogen
%
Field
Capacity
pF2.5
Wilting
Point
pF4.2
Coarse Sand
(0.2- 2.0 mm)
Fine Sand
(0.02- 0.2 mm)
Silt
(0.002- 0.02 mm)
Clay
(<0.002 mm)
A1
0-20
4.3
0.32
27.7
10.9
14
45
17
14
A21
20-30
16.9
3.8
19
53
19
9
A22
30-40
16.1
4.4
24
48
15
12
B21
40-70
9.8
40.6
28.8
3
10
5
80
B22
70-90
42.3
28.3
3
12
4
78
B23
90+
40.5
28.1
4
12
5
75


Profile Described By: Mark Imhof and Austin Brown (June 1998).
