SW22

Location: Simpson

Australian Soil Classification: Humose-Acidic, Dystrophic, Grey DERMOSOL

Map Unit: Simpson/Tomahawk Creek Land System (Pitt, 1981).

General Landscape Description: Grazing paddock (dairy).
Site Description: Gently undulating plain
Geology: Tertiary - Neogene Hanson Plain Sand Formation.

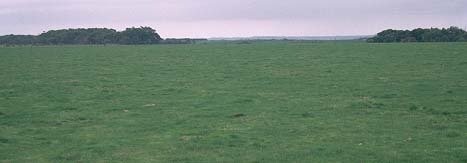

Image: SW22 Landscape
SW22 landscape


Soil Profile Morphology:

Surface Soil

O0-5 cmOrganic mat:

Image: SW22 Profile
SW22 profile
A15-25 cm Black (10YR2/1); loam; moderate coarse blocky, parting to moderate medium sub-angular block structure; weak consistence moist; pH 4.5; clear change to:

A225-45 cmVery dark grey (10YR3/1); fine sandy loam; moderate coarse polyhedral structure; weak to firm consistence dry; pH 4.5; gradual change to:

Subsoil

B145-80 cmDark brown (7.5YR3/2); some rusty root channel mottling; light fine sandy clay loam; weak very coarse prismatic, parting to weak to moderate coarse blocky structure; firm consistence dry; pH 4.8; gradual change to:

B2180+ cmBrown (7.5YR5/2) with strong brown (7.5YR5/8) mottles and some dark stains along root channels; fine sandy clay loam; weak very coarse prismatic, parting to weak to moderate coarse blocky structure; firm to very firm consistence dry; pH 4.9.
NOTE: Some coffee rock in areas.

Key Profile Features:

Soil Profile Characteristics:

pH
Salinity Rating
Surface
(A1 horizon)
Very Strongly Acid
Low
Non-Sodic
None
Subsoil
(B21 horizon)
Very Strongly Acid
Very Low
Non-Sodic
None

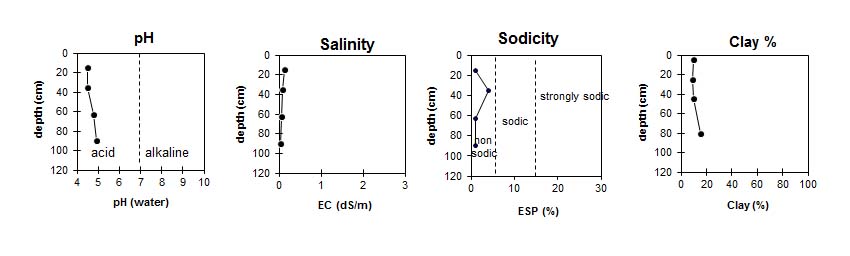

Image: SW22 Graphs

The surface soil and subsoil is very strongly acid. The salinity rating in the surface is low, the subsoil is very low.The surface and upper subsoil is non-sodic. The clay content is fairly constant throughout the profile.
Horizon
Horizon Depth
(cm)
pH
(water)
pH
CaCl2
EC
(dS/m)
Exchangeable Cations
Ca
Mg
K
Na
meq/100g
A1
5-25
4.5
3.8
0.14
6.5
0.6
0.1
0.1
A2
25-45
4.5
3.8
0.08
1.1
0.2
0.05
0.05
B1
45-80
4.8
4.3
0.06
0.2
0.05
0.05
0.05
B21
80+
4.9
4.2
<0.05
0.1
0.2
0.05
0.05

Horizon
Horizon Depth
(cm)
Acidity
meq/100g
Oxidisable Organic Carbon
%
Total
Nitrogen
%
Field Capacity
pF2.5
Wilting Point
pF4.2
Coarse Sand
(0.2-2.0 mm)
Fine Sand
(0.02-0.2 mm)
Silt
(0.002-0.02 mm)
Clay
(<0.002 mm)
A1
5-25
10
9.6
0.49
30
21
19
42
12
10
A2
25-45
18
9
17
50
19
9
B1
45-80
16
5
19
50
17
10
B21
80+
5.5
16
5
19
48
20
15

Profile Described By: Mark Imhof and Austin Brown (May 1988).
