CRC15
Location: Telegraph Hill
Australian Soil Classification: Bleached-Mottled, Magnesic, Red KUROSOL
Site Description:Grazing paddock - CRC plant evaluation site.
Geology: Metamorphic (schist/gneiss) ridge (aureole) between Ordovician (thinly bedded shale) uplands and intrusive gneiss (Devonian granite) on lower northern slopes.

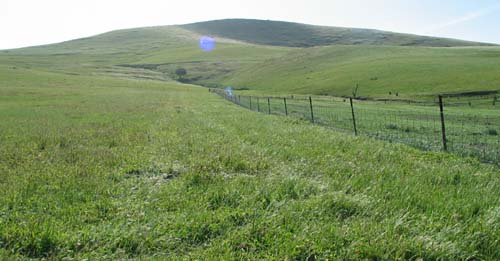

 CRC15 Landscape |
Soil Profile Morphology
Surface Soil

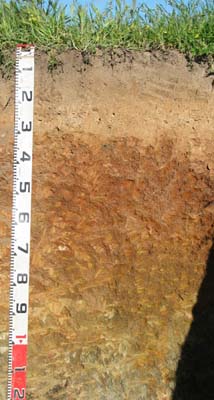

A1 | 0-10 cm | Very dark greyish brown (10YR3/2); fine sandy loam; pH 5.6: |  CRC15 Profile |
| A21 | 10-15 cm | Light yellowish brown (10YR6/4); conspicuously bleached (10YR8/2 dry); fine sandy loam; pH 5.0: | |
| A22 | 15-30 cm | Light brown (7.5YR6/4); fine sandy loam; pH 5.0: | |
| Subsoil | |||
| B21 | 30-55 cm | Yellowish red (5YR4/6); medium clay; strong coarse medium-fine blocky structure; pH 5.2: | |
| B22 | 55-80 cm | Yellowish red (5YR5/6) with brownish yellow (10YR6/8) mottles; light medium clay; strong coarse medium-fine blocky structure; pH 5.9: | |
| B23 | 80-110 cm | Brownish yellow (10YR6/6) with red (2.5YR5/6) mottles; silty clay loam; pH 6.4: | |
| B/C | 110+ cm | Silty loam; with some manganese staining [mangans]) in patches mixed with weathering schist; pH 7.1. | |
Key Profile Features
- Strong texture contrast between surface (A) horizon and subsoil (B21) horizon.

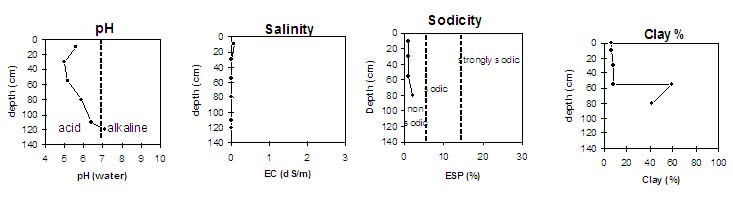

Key Profile Characteristics
pH | Salinity Rating | |||
Surface (A1 horizon) | Moderately Acid | Very Low | Non-Sodic | None |
Subsoil (B21c horizon) | Strongly Acid | Very Low | Non-Sodic | None |
Deeper subsoil (at 110+ cm) | Slightly Alkaline | Very Low | Non-Sodic | Strong |
 |
Horizon | Horizon Depth (cm) | pH (water) | pH (CaCl2) | EC dS/m | Exchangeable Aluminium ppm | Exchangeable Acididty meq/100g | Exchangeable Cations | Coarse Sand (0.2-2.0 mm) % | Fine Sand (0.02-0.2 mm) % | Silt (0.002-0.02 mm) % | Clay (<0.002 mm) % | |||
Ca | Mg | K | Na | |||||||||||
meq/100g | ||||||||||||||
A1 | 0-10 | 5.6 | 5.0 | 0.07 | <10 | 8.1 | 4.2 | 1.6 | 0.19 | 0.19 | 14 | 56 | 13 | 6 |
A22 | 15-30 | 5.0 | 4.4 | <0.05 | 55 | 4.8 | 0.45 | 0.31 | 0.07 | 0.17 | 9 | 65 | 20 | 8 |
B21 | 30-55 | 5.2 | 4.4 | <0.05 | 120 | 11 | 2.3 | 2.1 | 0.21 | 0.11 | 1 | 22 | 18 | 59 |
B22 | 55-80 | 5.9 | 5.3 | <0.05 | <10 | 6.2 | 0.39 | 4.7 | 0.33 | 0.23 | 2 | 32 | 24 | 42 |
B23 | 80-110 | 6.4 | 5.7 | <0.05 | ||||||||||
B/C | 110+ | 7.1 | 5.9 | <0.05 | ||||||||||
Management Considerations:
- The levels of exchangeable calcium are very low compared to levels of exchangeable manganese (i.e. magnesic) in the subsoil (below 55 cm depth). This indicates that nutrient imbalances (e.g. calcium deficiency) may occur.
- The deep subsoil (from 110 cm depth) becomes strongly dispersive, which will result in restricted water movement at depth.
