PVI7

Location: PVI Hamilton.

Australian Soil Classification: Melanic (&Ferric), Eutrophic, Brown CHROMOSOL (thick, moderately gravelly, clay loamy surface).
Northcote Factual Key: Db 2.32
Great Soil Group: Possibly brown podzolic

Geology: Tertiary/Quaternary basalt.
General Landscape Description: Near base of the slope of a low rise.
Soil Mapping Unit: Monivae gravelly loam (slope phase).

Site Description: Uncultivated area between paddocks.

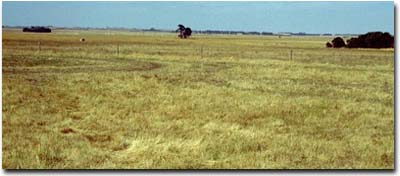

Photo: Soil Pit PVI 7 Landscape
PVI7 Landscape


Soil Profile Morphology:

Surface Soil

A10-20 cmVery dark greyish brown (10YR3/2); very fine sandy clay loam; moderate to strong medium polyhedral, parting to moderate to strong fine polyhedral structure; firm consistence (dry); many (30%) ferruginous nodules (2-5 mm); well structured uncultivated; pH 5.7; clear change to:

Photo: Soil site PVI 7 profile
PVI7 Profile
A2120-30 cmBrown (10YR5/3); sporadically bleached; clay loam (very fine sandy); moderate coarse blocky, parting to moderate medium blocky structure; firm consistence (dry); pH 6.2; gradual change to:

A2230-40 cmBrown (10YR5/3) with few faint yellowish brown (10YR5/6) mottles; light clay (very fine sandy); strong consistence (dry); pH 6.5; clear change to:

Subsoil

B2140-55 cmBrown (10YR4/3) with few (10%) yellowish brown (10YR5/4) mottles; medium clay; moderate medium polyhedral, parting to moderate fine polyhedral structure; strong consistence (dry); few (5%) ferruginous nodules (2-10 mm); pH 6.5; gradual change to:

B2255-100 cmBrown (10YR4/3) with many (20%) brownish yellow (10YR6/6) mottles; medium clay; moderate coarse prismatic, parting to moderate to strong coarse to medium to fine polyhedral structure; few (5%) ferruginous and manganese nodules (2-10 mm); pH 6.8; gradual change to:

B23100+ cmLight brownish grey (2.5Y6/2) and brownish yellow (10YR6/6); medium clay; strong consistence (moist); pH 6.5.

Key Profile Features:
Soil Profile Characteristics:


pH
Salinity Rating
Surface Soil
(A1 horizon)
Moderately Acid
Low
Non-Sodic
None
Upper Subsoil
(40 - 55 cm)
Slightly Acid
Low
Non-Sodic
None
Deep Subsoil
(at 100+ cm)
Slightly Acid
Low
Sodic
None

Graph: pH in PVI 7
Graph: Salinity in PVI 7
Graph: Sodicity in PVI 7
Graph: Clay in PVI 7
Horizon
Horizon
Depth
(cm)
pH
(water)
pH
(CaCl2)
EC 1:5
Exchangeable Cations
Ca
Mg
K
Na
meq/100g
A1
0-20
5.7
5.0
0.09
6.1
3.6
0.29
0.40
A21
20-30
6.2
5.3
0.06
5.3
3.5
0.12
0.44
A22
30-40
6.5
5.5
0.06
5.2
4.1
0.09
0.58
B21
40-55
6.5
5.6
0.07
6.0
6.1
0.14
0.89
B22
55-100
6.8
6.0
0.11
5.7
8.4
0.20
1.5
B23
100+
6.5
6.0
0.23
4.3
10
0.20
3.1


Horizon
Horizon
Depth
(cm)
Exchangeable
Aluminium mg/kg
Exchangeable Acidity
meq/100g
Field Capacity
pF2.5
Wilting
Point
pF4.2
Coarse Sand
(0.2- 2.0 mm)
Fine Sand
(0.02- 0.2 mm)
Silt
(0.002- 0.02 mm)
Clay
(<0.002 mm)
A1
0-20
<10
37
17
6
31
22
31
A21
20-30
<10
31
14
9
31
33
31
A22
30-40
33
17
14
25
18
41
B21
40-55
11
42
25
6
17
12
61
B22
55-100
11
50
31
4
7
12
77
B23
100+

Profile Described By: Mark Imhof, Paul Rampant (January 2001).
