SFS9b

Location: Woodhouse

Australian Soil Classification: Vertic (& Ferric), Mottled-Subnatric, Brown SODOSOL

Northcote Factual Key: Duplex.

General Landscape Description: Level plain within the Victorian volcanic plains. Flat gently sloping side of broad depression.
Site Description: Mound or 'puff' component of gilgai microrelief.
Land Use: Raised beds with canola.

SFS9b Landscape

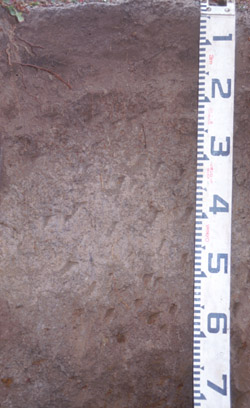

Soil Profile Morphology:

Surface Soil

A1	0-8/10 cm	Dark greyish brown (10YR4/2) with rusty root channel mottling; loam; apedal; weak consistence dry; pH 5; clear and wavy change to:	SFS9b Profile
A2	8/10-30 cm	Conspicuously bleached (10YR8/2d) at base of horizon; loamy gravel; very abundant (~90%) fine buckshot; pH 6.5; abrupt change to:
Subsoil
B21tss	30-100 cm	Olive brown (2.5Y4/4) with faint abundant (~50%) yellowish brown (10YR5/6-6/6) mottles; heavy clay; fine polyhedral structure; few fine buckshot; slickensides at 80cm depth; pH 6.8.
B22	100+ cm	As above.

Key Profile Features:

Strong texture contrast between surface (A) horizons and subsoil (B21) horizon.
Conspicuously bleached surface (A2) horizon.
Abundant ‘buckshot’ gravel throughout subsurface (A2) horizon.

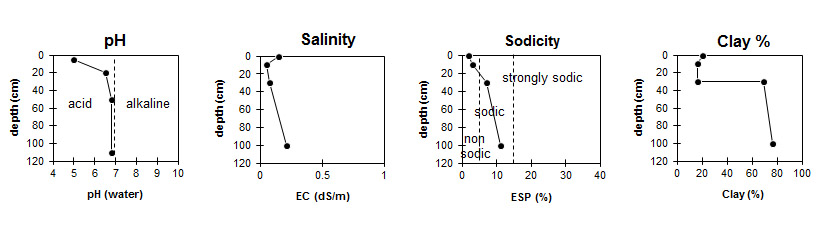

Soil Profile Characteristics:

	pH	Salinity Rating	Sodicity	Dispersion
Surface (A1 horizon)	Strongly Acid	Low	Non-Sodic	None
Subsoil (B21 horizon)	Slightly Acid	Low	Marginally Sodic	None¹
Deeper Subsoil (at 1 m)	Slightly Acid	Low	Sodic	None

¹ Strong-complete dispersion after remoulding.

Horizon	Horizon Depth (cm)	pH (water)	pH (CaCl₂)	EC dS/m	Organic Carbon %	Nitrogen %	Exchangeable Cations
							Ca	Mg	K	Na
							meq/100g
A1	0-8/10	5	4.4	0.15	4.3	0.36	4.2	1.6	0.22	0.35
A2	8/10-30	6.5	6	<0.05			2.7	1.4	0.13	0.26
B21tss	30-70	6.8	6.4	0.08			5.1	10	0.27	2.1
B22	100+	6.8	6.5	0.21			4.5	11	0.27	3.3

Horizon	Horizon Depth (cm)	Exchangeable Aluminium mg/kg	Exchangeable Acidity meq/100g	Field Capacity pF2.5	Wilting Point pF4.2	Coarse Sand (0.2-2.0 mm)	Fine Sand (0.02-0.2 mm)	Silt (0.002-0.02 mm)	Clay (<0.002 mm)


A1	0-8/10	37	14	34.6	12.1	5	39	28	20
A2	10-30		5.2	20.3	7.5	31	30	24	16
B21tss	30-70		12	45.1	27.9	3	13	9	70
B22	100+		11	45.4	29.8	3	10	8	76

Management Considerations:

Whole Profile

Plant available water capacity (PAWC) is considered to be medium (estimated at 140 mm) in the upper 100 cm of this soil profile.

Notes

This site had more earthworms than was seen at any other SFS site.

Profile Described By: Richard MacEwan (May 1999).
