SM03

Location: Cavendish

Australian Soil Classification: Vertic, Mottled-Subnatric, Brown SODOSOL

General Landscape Description: Gently Undulating Rises.
Site Description: Upper slope.
Land Use: Grazing.
Geology: Basalt.

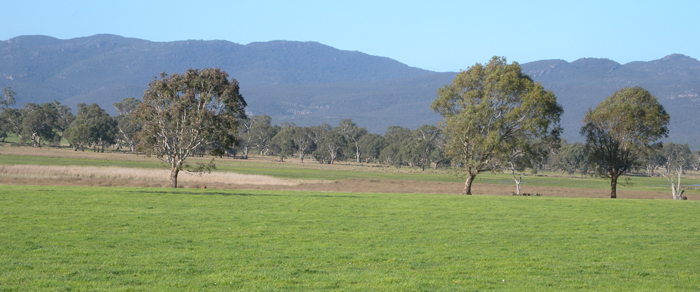

Image: SM03 Landscape
SM03 Landscape - soil site is in the foreground.

Soil Profile Morphology:

Surface Soil

Image: SM03 Profile
SM03 profile
A10-12 cmDark brown (7.5YR3/2); firm surface condition; heavy loam; moderate medium polyhedral, parting to fine polyhedral structure; rough fabric; weak consistence moderately moist; many medium to fine roots present; pH 5.1; abrupt change to:

A212-25/40 cmDark greyish brown (10YR4/2), sporadic bleach; sandy clay loam; weak medium polyhedral, parting to fine polyhedral structure; rough fabric; weak consistence moderately moist; medium to fine roots common; pH 5.1; abrupt and wavy change to:
Subsoil

B2125/40-60 cmStrong brown (7.5YR5/8) with many prominant dark grey (7.5YR4/1) and black (7.5YR2.5/1) mottles; medium heavy clay; moderate medium polyhedral, parting to fine polyhedral structure; smooth fabric; very firm consistence moderately moist; very plastic; prominent organo-clay cutans common; few fine roots present; pH 6.5; gradual change to:
B2260-105 cmLight olive brown (2.5Y5/3) with many prominent dark brownish yellow (10YR6/6) and dark grey (10YR4/1) mottles; heavy clay; moderate medium polyhedral, parting to fine polyhedral structure; smooth fabric; very firm consistence moist; very plastic; prominent organo-clay cutans common; fine ferro-manganiferous concretions common; few fine and very fine roots present; pH 7.8; clear and wavy change to:

B23105-145 cmLight brownish grey (10YR6/2) with many distinct strong brown (7.5YR4/6) mottles; medium clay (sandy); moderate coarse lenticular, parting to medium to fine prismatic structure; smooth fabric; very firm consistence moderately moist; very plastic; very few ferro-manganiferous concretions; few distinct slickensides and organo-clay cutans; few fine and very fine roots present; pH 8.3; diffuse change to:

B24145 - 160+ cmPale brown (10YR6/3), with many faint reddish yellow (7.5YR6/6) mottles; medium heavy clay (sandy); moderate coarse lenticular, parting to medium to fine prismatic structure; smooth fabric; very firm consistence moderately moist; very plastic; very few soft calcareous segregations; prominent slickensides common with organo-clay cutans; few very fine roots present; pH 8.2.



Soil Profile Characteristics:


pH
Salinity Rating
Surface
(A1 horizon)
Strongly Acid
Very Low
Non-Sodic
None
Subsoil
(B21 horizon)
Slightly Acid
Very Low
Sodic
Slight
Deeper Subsoil
(at 105-145 cm)
Moderately Alkaline
Low
Strongly Sodic
Moderate1
1 Strong dispersion after remoulding.

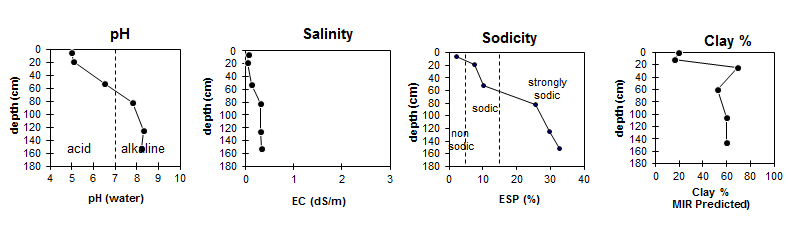

Image: SM03 Graph
The surface soil is strongly acid. The upper subsoil is slightly acid becoming moderately alkaline with depth.The surface and upper subsoil have a very low salinity rating. The salinity rating in the deeper subsoil is low.
The surface soil is non-sodic. The upper subsoil is sodic becoming strongly sodic with depth.The MIR predicted clay levels are quite high in this profile.

Chemical and Physical Analysis:

Horizon
Horizon Depth
(cm)
pH
(water)
pH
(CaCl2)
EC
dS/m
Exchangeable
Acidity
meq/100g
Total Carbon
g/100g
Exchangeable Aluminium
mg/kg
Exchangeable Cations
Ca
Mg
K
Na
meq/100g
A1
0-12
5.0
4.1
0.07
10
2.1
76
2.6
1.0
0.06
0.29
A2
12-25/40
5.1
4.2
<0.05
1.7
0.7
0.05
0.20
B21
25/40-60
6.5
5.2
0.13
11
7.1
11
0.38
3.3
B22
60-105
7.8
6.5
0.32
5.5
12
0.52
6.2
B23
105-145
8.3
7.0
0.31
4.3
10
0.42
6.2
B24
145-160+
8.2
7.0
0.34
4.8
11
0.34
7.8

Horizon
Horizon Depth
(cm)
Field
Capacity
pF2.5

(MIR Predicted)
Wilting
Point
pF4.2

(MIR Predicted)
Coarse Sand
(0.2-2.0mm)

(MIR Predicted)
Fine Sand
(0.02-0.2mm)

(MIR Predicted)
Silt
(0.002-0.02mm)

(MIR Predicted)
Clay
(<0.002mm)

(MIR Predicted)
A1
0-12
22.3
13.9
20
29
11
19
A2
12-25/40
17.3
10.2
22
32
12
16
B21
25/40-60
42.1
27.9
5
14
6
69
B22
60-105
35.5
22.8
12
19
4
52
B23
105-145
38.7
26.1
6
18
11
60
B24
145-160+
44.3
27.4
6
19
11
60


Profile Described By: David Rees and Ivanah Oliver (September 2014).
