WCSS02a

Location: Hamilton.

Australian Soil Classification: Vertic (& Sodic), Eutrophic, Black CHROMOSOL (thin to moderate surface horizon depth)
with Melacic-Vertic (& Sodic), Eutrophic, Black CHROMOSOL (thick surface horizon depth)

General Landscape Description: Gently undulating plain.
Site Description: Nitrous oxide trial site.
Geology: Quaternary basalt.

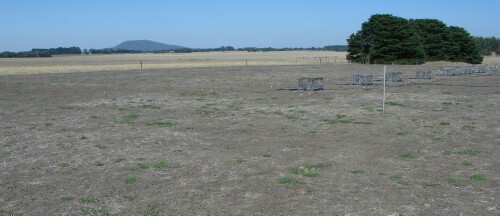

WCSS01-02 landscape
WCSS 01-02 Landscape

Soil Profile Morphology:

Surface Soil

A10-10 cm Dark brown (7.5YR3/2); some rusty root mottling; fine sandy clay loam; moderate coarse blocky, parting to strong medium to very fine polyhedral structure; very firm consistence dry; pH 5.0; clear change to:

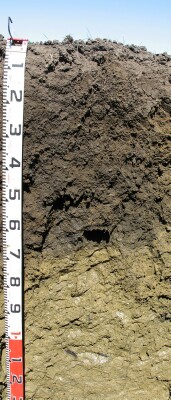

WCSS02b profile
WCSS02a Profile
Subsoil
B2110-30 cmDark brown (7.5YR3/2); medium clay; coarse medium to very fine polyhedral structure; weak consistence moist; pH 5.5; gradual change to:
B2230-65 cmDark brown (7.5YR3/2) with yellow (10YR7/6) mottles; medium heavy clay; weak to moderate coarse prismatic, parting to moderate coarse to medium sub-angular, and moderate medium to fine lenticular structure; firm consistence moist; pH 6.0; clear change to:
B2365-130 cmLight olive brown (2.5Y5/4); heavy clay; strong medium to very fine lenticular structure; firm consistence moist; pH 7.1; diffuse change to:
B3130-150 cmLight olive brown (2.5YR5/4) with few strong brown (7.5YR5/6) mottles; heavy clay; strong medium to fine lenticular structure; very firm consistence slightly moist; pH 7.6; singular ferruginous nodules 3 cm in diameter:
C150+ cmWeathered basalt.

Key Profile Features:
  • Strong texture contrast between surface (A) horizons and subsoil (B21) horizon.
  • Variability across soil profile.
  • Strongly vertic deeper subsoil (lenticular structure).
Soil Profile Characteristics:


pH

Salinity Rating
Surface
(A1 horizon)
Strongly acid
Low - Medium
Non-Sodic
None
Upper Subsoil
(B21 horizon)
Strongly acid
Very low
Sodic
None 1
Deeper subsoil
(at 65-130 cm)
Slightly alkaline
Low - Medium
Strongly Sodic
None
1 Slight dispersion after remoulding.

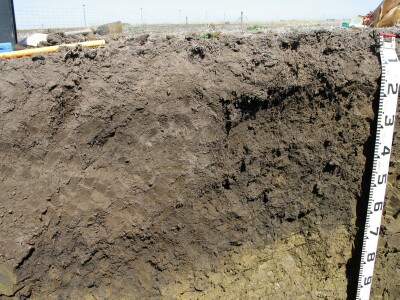

WCSS02b soil variability
Horizon variability across soil pit.

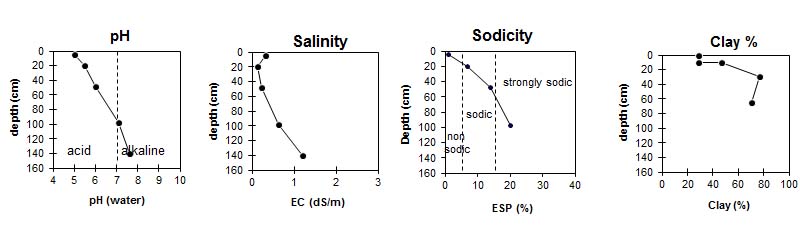

WCSS02a graphs

Horizon
Horizon
Depth
(cm)
pH
(water)
pH
(CaCl2)
EC
ds/m
Organic Carbon
g/100g
Exchangeable Cations
Ca
Mg
K
Na
meq/100g
A1
0-10
5.0
4.6
0.33
5.5
5.9
3.8
0.21
0.18
B21
10-30
5.5
4.6
0.12
2.4
5
7.6
0.19
1.3
B22
30-65
6.0
5.0
0.23
1.3
6.3
15
0.27
3.5
B23
65-130
7.1
6.5
0.64
7
18
0.43
8.5
B/C
130-150+
7.6
7.1
1.2
8.1
22
0.3
11

Horizon
Horizon Depth
(cm)
Exchangeable
Aluminium
mg/kg
Exchangeable Acidity
meq/100g
Field
Capacity
pF2.5
Wilting
Point
pF4.2
Coarse Sand
(0.2-2.0mm)
Fine Sand
(0.02-0.2mm)
Silt
(0.002-0.02mm)
Clay
(<0.002mm)
A1
0-10
29
16
40.9
18.9
3
36
29
28
B21
10-30
15
42.2
19.8
4
23
22
47
B22
30-65
15
55.9
32.9
2
8
8
77
B23
65-130
7.3
58.9
33.3
2
11
13
70
B/C
130-150+
66
35

Profile Described By: Mark Imhof and David Rees (May 2010).
