ESAS10

Location: Curyo
Australian Soil Classification: Sodic, Hypercalcic, Red DERMOSOL

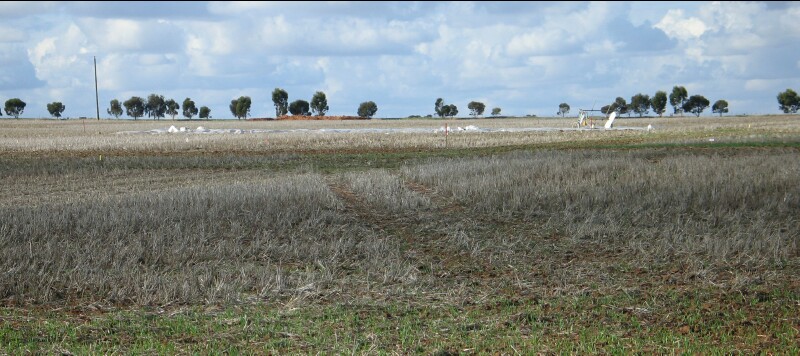

General Landscape Description: Upper slope of gently undulating rise	Site Description: Cropping paddock – BCG Field Day Site 2008. Conventionally tilled until 2 years ago and now no-till.
Geology: Quaternary aeolian deposits overlying Tertiary Parilla Sandstone

ESAS10
Soil Profile Morphology:

Surface Soil

A1	0-10 cm	Brown (7.5YR5/4); loamy light sand; weak to firm consistence (dry); slight dispersion after remoulding; very thin surface crust at 7.5 cm; no effervescence; pH 7; sharp change to:	ESAS10 Profile
A2	10-14 cm	Discontinuous layer; yellowish red (5YR5/6); sand; pH 7.4; sharp change to:
Subsoil
B1	10-20 cm	Yellowish red (5YR5/8); clay sand; weak very coarse prismatic structure, parting to weak to moderate very coarse to coarse blocky structure, parting weak very coarse prismatic structure; weak (moist) to strong (dry) consistence; strong dispersion after remoulding; roots to 80 cm; pH 8.2; clear change to:
B21	20-40 cm	Yellowish red (5YR5/6); sandy loam (clayey) increasing to sandy clay loam with depth; weak to moderate very coarse to coarse prismatic structure; strong dispersion after remoulding; pH 9.4:
B22	40-55 cm	Red (2.5YR4/6) with brown (7.5YR5/4) mottles; sandy clay loam; weak to moderate very coarse prismatic structure; moderately calcareous; pH 9.7:
B23	55-60 cm	Yellowish red (5YR5/6); medium clay to medium heavy clay; strong coarse to medium subangular blocky structure; slightly calcareous; pH 9.8:
B24k	60-85 cm	Red (2.5YR5/6); medium clay; very abundant (40-50%) fine soft- earth and semi-hard carbonates; pH 9.7; clear change to:
B25k	85-110 cm	Yellowish red (5YR5/6); very abundant (40%) fine-soft earth and semi-hard carbonates; pH 9.8:
B26k	11-130 cm	Yellowish red (5YR5/6); very abundant (40%) fine-soft earth and semi-hard carbonates; pH 9.8.

Key Profile Features:

Gradual increase in texture (i.e. clay %) with depth down the profile.
Large amounts of carbonate (lime) in deeper profile.

Soil Profile Characteristics:

	pH	Salinity Rating	Sodicity	Dispersion
Surface (A1 horizon)	Neutral	Very Low	Non-Sodic	None¹
Upper Subsoil (B21 horizon)	Extremely Alkaline	Very Low	Strongly Sodic	Moderate²
Deeper subsoil (at 110-130 cm)	Extremely Alkaline	Medium	Strongly Sodic	-

¹ slight dispersion after remoulding
² strong dispersion after remoulding

Horizon	Horizon Depth	pH (water)	pH CaCl2	EC 1:5	Organic Carbon g/100g	Exchangeable Cations
						Ca	Mg	K	Na
						Meq/100g
A1	0-10	7	6.3	<0.05	0.33	2.1	0.68	0.33	<0.05
A2	10-20	7.4	6.9	0.09
B1	10-20	8.2	6.9	0.09		3.1	2.4	0.32	0.99
B21	20-40	9.4	8.2	0.16		3.1	4.5	0.56	2.7
B22	40-55	9.7	8.8	0.38		3.1	5.3	0.78	3.1
B23	55-60	9.8	8.9	0.67		3.9	7	1.1	5.2
B24k	60-85	9.7	8.8	0.65		4.6	7	1.1	4.5
B25	85-110	9.8	8.8	0.57		4	6.4	1	4.2
B26	110-130	9.8	8.7	0.53		3.7	5.6	0.86	3.6

Horizon	Horizon Depth	Boron mg/kg	Field pF2.5 g/100g	Wilting Point pF4.2 g/100g	Coarse Sand (0.2-2.0mm) %	Fine Sand (0.02-0.2mm) %	Silt (0.002-0.02mm) %	Clay (<0.002mm) %


A1	0-10	0.5	11.5	1.8
A2	10-20	0.4	11.6	1.4
B1	10-20	1.4	11.7	4.8
B21	20-40	4.4	19.6	7.9
B22	40-55	7.3	22	8.4
B23	55-60	12	32.2	15.8
B24k	60-85	9.8	33	15.9
B25	85-110	13	35.6	16.7
B26	110-130	11
