NE43

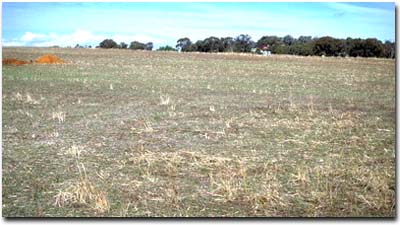

NE43 landscape

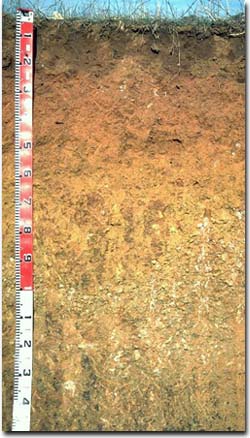

A1	0-15 cm	Dark brown (7.5YR3/3); fine sandy clay loam; weak coarse blocky structure; firm consistence moist; contains a slight (5%) amount of ferromanganiferous nodules (5-10 mm size); contains a trace amount of manganese stains and quartz; pH 5.8; clear change to:	NE43 profile
A2	15-20 cm	Brown (10YR4/3) and yellowish brown (10YR5/8); fine sandy clay loam; pH 6.7; clear change to:
Subsoil
B21	20-35 cm	Brown (10YR5/3) with strong brown (7.5YR4/6) mottles; light clay; moderate very coarse prismatic, breaking to moderate coarse blocky structure; very firm consistence moist; contains a few (5%) ferromanganiferous nodules (10 -15 mm size); pH 7.3; clear change to:
B22	35-45 cm	Strong brown (7.5YR5/6) with brown (7.5YR4/4) mottles; medium clay; moderate coarse blocky structure; very firm consistence moist; pH 7.9; clear change to:
B23	45-60 cm	Yellowish brown (10YR5/4 and 5/8); light medium clay; moderate medium polyhedral structure; very firm consistence moist; contains many (30%) ferromanganiferous nodules (2 -10 mm size); pH 8.2.
B24	60-100 cm	Yellowish brown (10YR5/4); medium clay; moderate very coarse prismatic, breaking to moderate coarse blocky structure; firm consistence moist; contains many (20%) manganese stains (in a band at 60-70 cm); pH 8.6; gradual change to:
B3	100 cm+	Light olive brown (2.5Y5/5) with yellowish red (5YR4/6) mottles; medium clay; large slickensides present; firm consistence moist; contains a few (2 - 5%) carbonate nodules (5 - 20 mm size); pH 9.1

• Lack of strong texture contrast between surface (A) and structured subsoil (B21) horizon (ie. dermosolic).
• Deep subsoil (below 1m depth) is calcic and displays vertic properties.

Soil pH increases with depth down the profile. The surface soil is moderately acid. The upper subsoil is slightly alkaline and the deep subsoil is very strongly alkaline.	The level of soluble salts is very low throughout the top metre of the soil profile. At 1m depth the salinity rating becomes low-medium.	The surface soil is non-sodic. The upper subsoil is sodic and the deeper subsoil is strongly sodic.	There is no strong texture contrast at the A/B horizon interface. Clay percentage gradually increases with depth in the subsoil.

• Plant available water capacity (PAWC) is considered to be very low-low (estimated at 45 mm). This is based on available laboratory data and assumes an effective rooting depth of 35 mm. Rooting depth is likely to be restricted by the strongly sodic deeper subsoil.

• The surface soil has a high fine sand and silt content (ie. 67%). Soils such as these depend on organic matter to maintain aggregation and prevent soil slaking. Organic matter will decrease if cropping takes place and should be improved by adopting residue retention, minimum tillage and pasture rotations. As well as improving aggregation, organic matter assists in increasing soil water holding capacity and fertility. The organic carbon value measured at the pit site is reasonably low (ie. 1.3%).
• The subsurface (A2) horizon disperses strongly after remoulding. Cultivation of this horizon should be avoided if it is in a moist-wet condition. Such disturbance is likely to result in structural degradation and development of a cultivation pan.

• The dense and coarsely structured upper subsoil is sodic and disperses completely. As a result, root and water movement will be significantly restricted in the subsoil. Disturbance to this horizon by cultivation when in a moist-wet condition is likely to cause structural degradation. Deep ripping with gypsum application has been advocated by some as an ameliorative technique for sodic subsoils. A test strip could be used to assess this treatment. Deep tillage can be expensive and should not be carried out if the soil is wet. If subsoil material is brought up to the surface then it should be treated with gypsum to prevent dispersion occurring.
• Waterlogging is likely to occur in the surface horizons after heavy rain as water builds up on the slowly permeable subsoil.
• The deeper subsoil (from 35 cm depth) is strongly sodic and has a low calcium:magnesium ratio. Strong dispersion occurs as a result. Deep drainage will be significantly restricted as a consequence. The high level of exchangeable sodium in the subsoil may also result in nutrient imbalance and could even have a toxic effect on some plants.
• The deeper subsoil (from 45 cm depth) contains a significant amount of manganese segregations which may have a toxic effect on some plants.
• The deep subsoil (at 1m depth) displays vertic properties (ie. presence of large slickensides). This indicates that significant shrinking and swelling occurs during wetting and drying cycles. These properties may be of significance for engineering purposes (eg. fencelines) and may result in some variability across the paddock (eg. varying surface and upper subsoil depths).

• Lime (1t/ha) applied in late 1993.
• Continuous cereal cropping practised.
• Waterlogging occurs after heavy rains.
