CRC18

Back to Bet Bet Creek Catchment Homepage

Location: Lexton
Aust. Soil Class.: Vertic (& Magnesic), Mottled-Subnatric, Red SODOSOL (medium to thick very gravelly surface horizons)

General Site Description: Gently undulating rise
Site Description: Pasture
Geology: Cambrian/Ordovician sediments

Photo: Landscape Photo Bet Bet soil pits 1, 2 and 3
CRC18 Landscape

Soil Profile Morphology:

Surface Soil

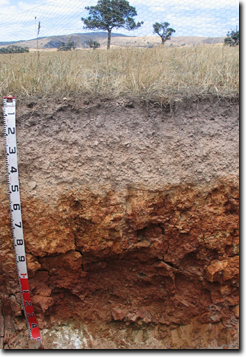

Photo: Profile Photo Bet Bet soil pit 3
CRC18 Profile
A10-10 cmVery dark greyish brown (10YR3/2); fine sandy loam; hardsetting; weak coarse angular blocky, parting to weak medium angular blocky structure; many (25%) fine (2-20 mm) angular and subangular quartz fragments; pH 5.6; clear change to:
A2110-25 cmBrown (10YR4/3) conspicuously bleached (10YR7/2 dry); fine sandy loam; massive; very firm consistence (dry); many (50%) fine (2-25 mm) subangular quartz fragments; pH 5.8; clear change to:
A2225-45 cmYellowish brown (10YR5/4) conspicuously bleached (10YR7/2 dry); light sandy clay loam; massive; very firm consistence (dry); very few (<2%) medium to coarse (2-25 mm) ferruginous nodules; very many (50-70%) few to many fine (2-4 mm) quartz fragments; pH 6.2; clear change to:
A2345-50 cmLight yellowish brown (2.5Y6/4) and yellowish red (5YR5/6) conspicuously bleached (10YR7/2 dry); coarse sandy clay loam; massive; strong consistence (dry); very few (<2%) medium to coarse (5-20 mm) ferruginous nodules; macropores present; pH 6.1; abrupt and wavy change to:

Note: in some areas there may only be a surface (A1) horizon overlying clay subsoil at 10 cm depth. In other areas the surface (A1) horizon overlies a bleached (A2) horizon, and the subsoil can be as much as 60 cm from the surface.
Subsoil
B2150-65 cmDark red (2.5YR4/6) with many (20%) medium (5-15 mm) reddish yellow (7.5YR6/8) mottles; light medium clay (superplastic); strong coarse angular blocky, parting to strong medium angular blocky structure; strong consistence (dry); few (1-2%) fine (2-5 mm) quartz fragments; pH 5.9; gradual change to:
B2265-85 cmBrownish yellow (10YR6/6) with many (40%) medium (5-15 mm) distinct dark yellowish brown (10YR4/6) mottles; light medium clay; strong consistence (dry); pH 5.4; clear change to:
B2385-110 cmDark yellowish brown (10YR4/6) with distinct light grey (2.5Y7/2) mottles; light medium clay; weak to medium very coarse prismatic, parting to medium very coarse blocky structure; smooth-faced peds; strong consistence (dry); few (2-5%) medium (6-20 mm) angular quartz fragments; slickensides present; gradual change to:
B24110-140 cmDark red (2.5YR4/6) with distinct light grey (2.5Y7/2) mottles; light medium clay (silty); medium coarse polyhedral structure; smooth-faced peds; slickensides present; pH 5.6; pH 5.7; clear change to:
BC140-150 cmLight yellowish brown (2.5Y6/3) with reddish yellow (5YR6/6) mottles; light medium clay:
R+50+ cmSaprolite


Key Profile Features: Soil Profile Characteristics:


pH
Salinity Rating
Surface
(A1 horizon)
Moderately Acid
Very Low
Non-Sodic
None1
Subsoil
(B21 horizon)
Moderately Acid
Low
Sodic
Moderate to Complete
Deeper subsoil
(at 55-70 cm)
Moderately Acid
Low
Sodic
Strong
1 Slight dispersion after remoulding

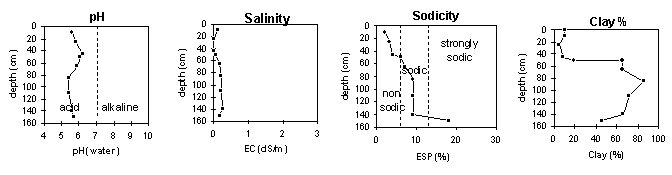

Photo: Bet Bet 3 graphs

Horizon
Horizon Depth
pH
(water)
pH
CaCl2
EC
dS/m
NaCl
%
Exchangeable Cations
Ex Al
mg/kg
Ex Ac
meq/100g
Field
pF2.5
Wilting Point
pF4.2
Coarse Sand
(0.2-2.0mm)
Fine Sand
(0.02-0.2mm)
Silt
(0.002-0.02mm)
Clay
(<0.002mm)
Ca
Mg
K
Na
meq/100g
A1
0-10
5.6
4.8
0.11
5.3
0.89
0.38
0.27
<10
10
32
-
16
51
14
10
A21
10-25
5.8
4.6
<0.05
0.75
0.19
0.08
0.11
24
3.0
21.7
-
21
55
17
5
A22
25-45
6.2
5.0
<0.05
0.96
0.40
0.10
0.17
<10
-
16.2
-
29
46
12
9
A23
45-50
6.1
4.6
0.05
0.89
1.1
0.11
0.37
54
-
18.9
7.4
21
38
20
19
B21
50-65
5.9
4.8
0.17
2.2
3.8
0.24
1.3
81
11
38.3
22.7
4
16
12
65
B22
65-85
5.4
4.3
0.22
0.71
6.3
0.32
2.6
370
18
47.3
29.2
1
3
6
86
B23
85-110
5.2
4.3
0.25
43.0
25.7
3
1
11
72
B24
110-140
5.6
4.9
0.27
NR
NR
NR
NR
2
5
23
66
BC
140-150
5.7
4.3
0.17
0.14
15
0.30
6.6
400
15
10
7
33
46

Notes:
