CFTT12

Site: Delburn	Location: APP species/seedlot trial VRV146
*Aust. Soil Class.:* Acidic, Mesotrophic, Brown DERMOSOL	*Great Soil Group:* yellow earth
Tech. Class: 112-5-50/4-1-1-32	Site Description: 8% simple slope to west
Geology: Mid-Tertiary sediments, probably includes colluvium from basalt	APP Mapping Unit: Silver Creek

CFTT12 Landscape

Soil Profile Morphology:

Surface Soil

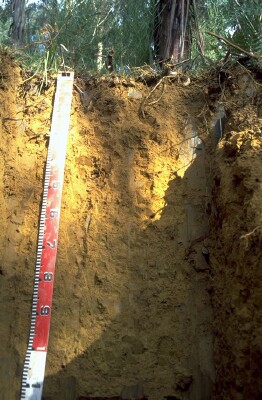

A11	0 – 15 cm	Brown (7.5YR5/4) with slightly darker worm casts; clay loam; strong coarse granular structure; firm consistence moist; pH 5.1; clear and smooth transition to:	CFTT12 Profile
A12	15 – 60 cm	Strong brown (7.5YR5/6); light clay; moderate coarse granular structure; firm consistence moist; pH 5.2; diffuse and smooth transition to:
Subsoil
B21	60 – 100 cm	Yellowish brown (10YR5/4), few, medium, distinct, yellowish brown (10YR5/8) mottles; light clay; moderate coarse granular structure; firm consistence moist; diffuse and smooth transition to:
B22	100 – 160 cm	Yellowish brown (10YR5/4), common, coarse, prominent, red (2.5YR4/6) mottles, light clay; moderate granular structure (less than 20 mm); firm consistence moist.

Key Profile Features:

Lack of strong texture contrast between surface (A) horizons and subsoil (B21) horizons.

Soil Profile Characteristics:

	pH	Salinity Rating	Sodicity	Dispersion
Surface (A1 horizon)	Strongly Acid	Very Low	Non-Sodic	None
Subsoil (B21 horizon)	Strongly Acid	Very Low	Non-Sodic	None

The soil profile is strongly acid throughout.

The level of soluble salts is very low throughout the soil profile.

The clay content increases gradually with depth down the profile.

Horizon	Horizon Depth	pH (water)	pH CaCl2	EC 1:5	NaCl	Exchangeable Cations
						Ca	Mg	K	Na
						Meq/100g
A11	0-15	5.1	4.4	0.08		0.85	1.6	0.16	0.31
A12	15-60	5.2	4.5	0.06		0.54	1.9	0.07	0.24

Horizon	Horizon Depth	Ex Al mg/kg	Ex Ac meq/100g	Field pF 2.5	Wilting Point pF4.2 g/100g	Coarse Sand (0.2-2.0mm) %	Fine Sand (0.02-0.2mm) %	Silt (0.002-0.02mm) %	Clay (<0.002mm) %


A11	0-15	250	19	32.7	13.3	2.7	30.3	27	30.5
A12	15-60	150	11	31.1	13.6	1.2	30.2	27	38.5

Management Considerations:

The soil profile is strongly acid throughout. Availability of some trace elements (eg. copper, molybdenum) may be low as a result. Aluminium toxicity can also be a problem in strongly acid soils. The levels measured at this site are quite high (especially in the A11 horizon) and may restrict the growth of aluminium sensitive species.
The level of exchangeable cations is quite low throughout the profile (and dominated by magnesium). Some nutrient deficiencies may occur.

Notes:

No physical impeding layer evident to 2 metres depth.

Profile Sampled by: Ian Sargeant and Justin Wong (3/6/99)
