LP81

Location: Frenchmans

Australian Soil Classification: Mottled, Eutrophic, Red CHROMOSOL (gravelly)

Northcote Factual Key: Dy 3.41

General Landscape Description: Footslopes of Pyrenees Ranges.
Geology: Tertiary river gravel deposits (on alluvial apron along base of Pyrenees Range) and/or Quaternary colluvium.
Original Vegetation: Includes Red Box (Eucalyptus polyanthemos).

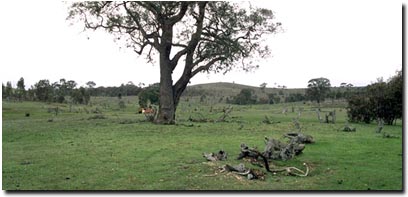

Image: LP81 Landscape
LP81 Landscape

Soil Profile Morphology:

Surface Soil

A10-5 cmBrown (7.5YR4/4); fine sandy loam; few quartz gravels on surface; massive; weak consistence moist; pH 5.5; abrupt and wavy change to:Image: LP81 Landscape
LP81 Profile
A25-25 cmBrownish yellow (10YR6/6) conspicuously bleached (10YR7/3d); fine sand (becoming fine sandy loam with depth); weak consistence moist; contains a few (5%) ferruginous nodules; and very many (70%) quartz fragments (30 mm diameter); pH 5.8; abrupt wavy change to:
Subsoil
B125-27 cmYellowish red (5YR5/8); fine sandy light clay; moderate medium polyhedral structure; pH 6.2:
B2127-45 cmYellowish red (5YR5/8); medium clay; medium coarse blocky, parting to strong fine polyhedral structure; sticky consistence wet; pH 5.7; gradual and wavy change to:
B2245-75 cmStrong brown (7.5YR5/6) with dark red (2.5YR4/8) and dark red (2.5YR3/6) mottles; medium heavy clay; strong coarse blocky, parting to strong fine polyhedral structure; sticky consistence wet; contains a few (< 2%) quartz fragments (30 mm diameter); pH 5.4.

Key Profile Features:

Soil Profile Characteristics:

pH
Salinity Rating
Surface
(A1 horizon)
Strongly Acid
Very Low
Non-Sodic
None1
Subsoil
(B21 horizon)
Moderately Acid
Very Low
Non-Sodic
None
Deeper Subsoil
(at 60 m)
Strongly Acid
Very Low
Non-Sodic
None1
1 Slight dispersion with remoulding.

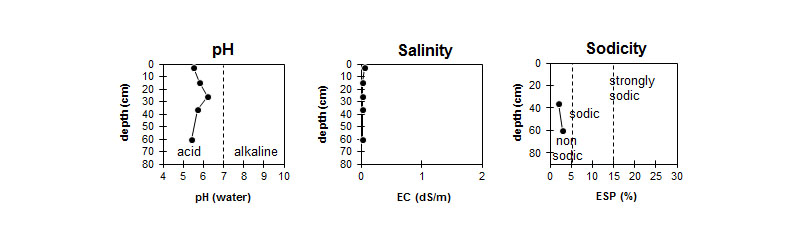

Image: LP81 graphs
The surface is strongly acid. The subsoil is moderately acid becoming strongly acid with depth.The profile has a very low salinity rating throughout.The profile is non-sodic throughout.

Chemical and Physical Analysis:

Horizon
Horizon Depth
(cm)
pH
(water)
pH
(CaCl2)
EC
dS/m
Nitrogen
%
Organic Carbon
%
Exchangeable Cations
Ca
Mg
K
Na
Meq/100g
A1
0-5
5.5
4.1
0.05
0.12
1.2
0.9
0.4
0.3
<0.1
A2
5-25
5.8
4.8
<0.05
0.4
0.2
0.2
<0.1
B1
25-27
6.2
5
<0.05
1.9
2.3
0.4
<0.1
B21
27-45
5.7
4.6
<0.05
2.3
4.4
0.7
0.1
B22
45-75
5.4
4.3
<0.05
0.9
6
0.6
0.2

Horizon
Horizon Depth
(cm)
Exchangeable Aluminium
mg/kg
Exchangeable Acidity
meq/100g
A1
0-5
A2
5-25
B1
25-27
B21
27-45
B22
45-75
170
11.8

Management Considerations:

Whole Profile Surface (A) Horizons Subsoil (B) Horizon Comments from Landholder:
Profile Described By: Mark Imhof, Paul Rampant, Sonia Thompson, Ruth Lourey and Karen De Plater (June 1995).
